Fairino FR10 | 6DOF | 1400mm | 10kg

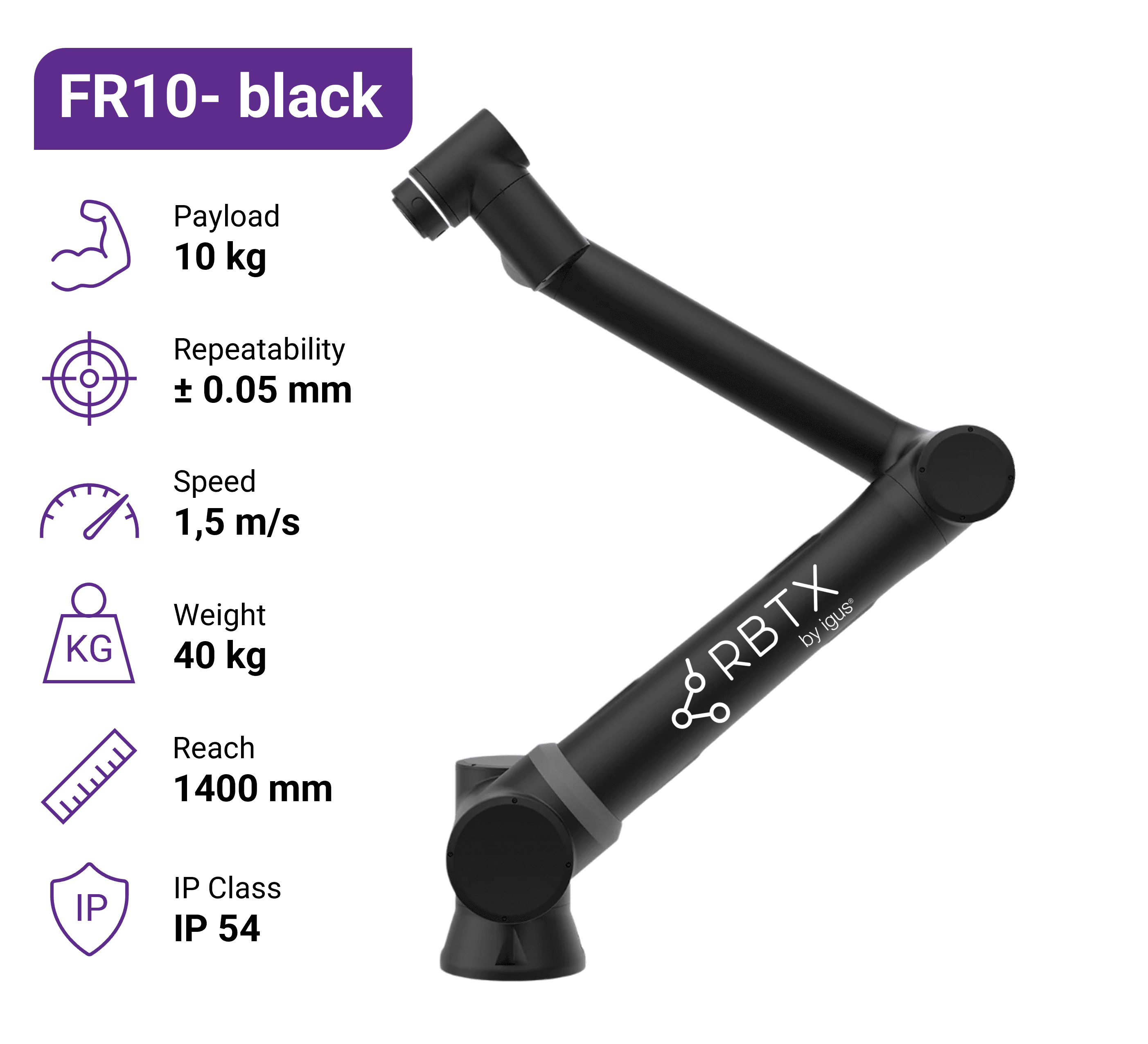

The FAIRINO FR10 Black Edition is a powerful 6-axis collaborative robot designed for dynamic automation tasks involving larger workpieces and workspaces. With a rated payload of 10 kg, a reach of 1,400 mm, repeatability of ±0.05 mm, and a typical TCP speed of 1.5 m/s, it combines payload capacity, precision, and dynamic performance. The robot arm weighs approximately 40 kg and features an IP54 protection rating. The Black Edition enhances the FR10 platform with a black exterior design, making it particularly suitable for uniformly designed machines, visible production installations, and showrooms. Customers benefit from the proven performance specifications of the FR10 in a visually distinctive version for demanding automation projects. This provides greater clarity when selecting a solution.

The FAIRINO FR10 Black Edition is suitable for machine tending, palletizing, packaging, material handling, assembly, quality inspection, and vision-guided pick-and-place processes. With its 1,400 mm reach, it can serve deep machines, larger fixtures, or multiple positions within a cell. The 10 kg rated payload allows for larger workpieces and more capable grippers, while ±0.05 mm repeatability supports consistent and reproducible operations. The black design provides additional value for representative installations and uniform machine concepts. For environments with higher exposure to dust or water, the IP65 version is more suitable; applications requiring more than 10 kg total payload should consider a larger model.

The FAIRINO FR10 Black Edition is configured via a browser-based web interface or a 10.1-inch teach pendant. Positions can be taught directly on the robot and linked together in the graphical user interface to create automated workflows. SDKs and APIs for Python, C++, C#, ROS, and ROS 2 are available for custom applications. TCP/IP and Modbus TCP/RTU support communication with external systems, while PROFINET, EtherNet/IP, and EtherCAT extend integration capabilities within industrial control environments. This makes the cobot suitable for both rapid deployment and advanced automation integrations. At the same time, the black housing design facilitates visual alignment with machines, cells, and presentation installations.

The FAIRINO FR10 Black Edition is well suited for companies looking to automate larger workspaces, handle loads of up to 10 kg, and prefer a black machine design. Machine builders, system integrators, manufacturing operations, and showrooms benefit from its 1,400 mm reach, ±0.05 mm repeatability, 1.5 m/s typical TCP speed, and open communication interfaces. Key considerations when sizing an application include the combined weight of the gripper and workpiece, center-of-gravity offset, cycle time, and workspace requirements. The IP54 protection rating is intended for typical controlled industrial environments. For applications with greater exposure to dust or water, the FR10 IP65 is the more appropriate option. Collaborative operation requires a risk assessment of the complete application.

Through the RBTX Marketplace, the FAIRINO FR10 Black Edition can be combined with grippers, vacuum systems, cameras, force sensors, safety technology, feeding systems, pedestals, and additional peripheral equipment. This enables the creation of a coordinated solution for machine tending, material handling, packaging, assembly, inspection, or palletizing. The black robot design supports a consistent appearance across machines, cells, and customer-facing installations. Alternatively, the cobot can be configured as part of a complete robotic cell including end effector, controller, base frame, and safety concept. RBTX supports the selection of compatible components and thereby reduces integration risks on the path to a productive and visually cohesive automation solution.
