Fairino FR20 | 6DOF | 1854mm | 20kg

The FAIRINO FR20 IP65 is designed for automation applications where robots must operate reliably under demanding environmental conditions. Its IP65 protection rating safeguards the system against dust ingress and water jets from multiple directions, extending its range of applications compared to the standard version. This makes the cobot particularly suitable for production environments with intensive cleaning requirements or where dust and moisture may be present. At the same time, the powerful performance characteristics of the FR20 remain unchanged. With a rated payload of 20 kg, a maximum payload of up to 25 kg, and a reach of 1854 mm, the robot automates large work areas and demanding material handling tasks in modern manufacturing and logistics environments.

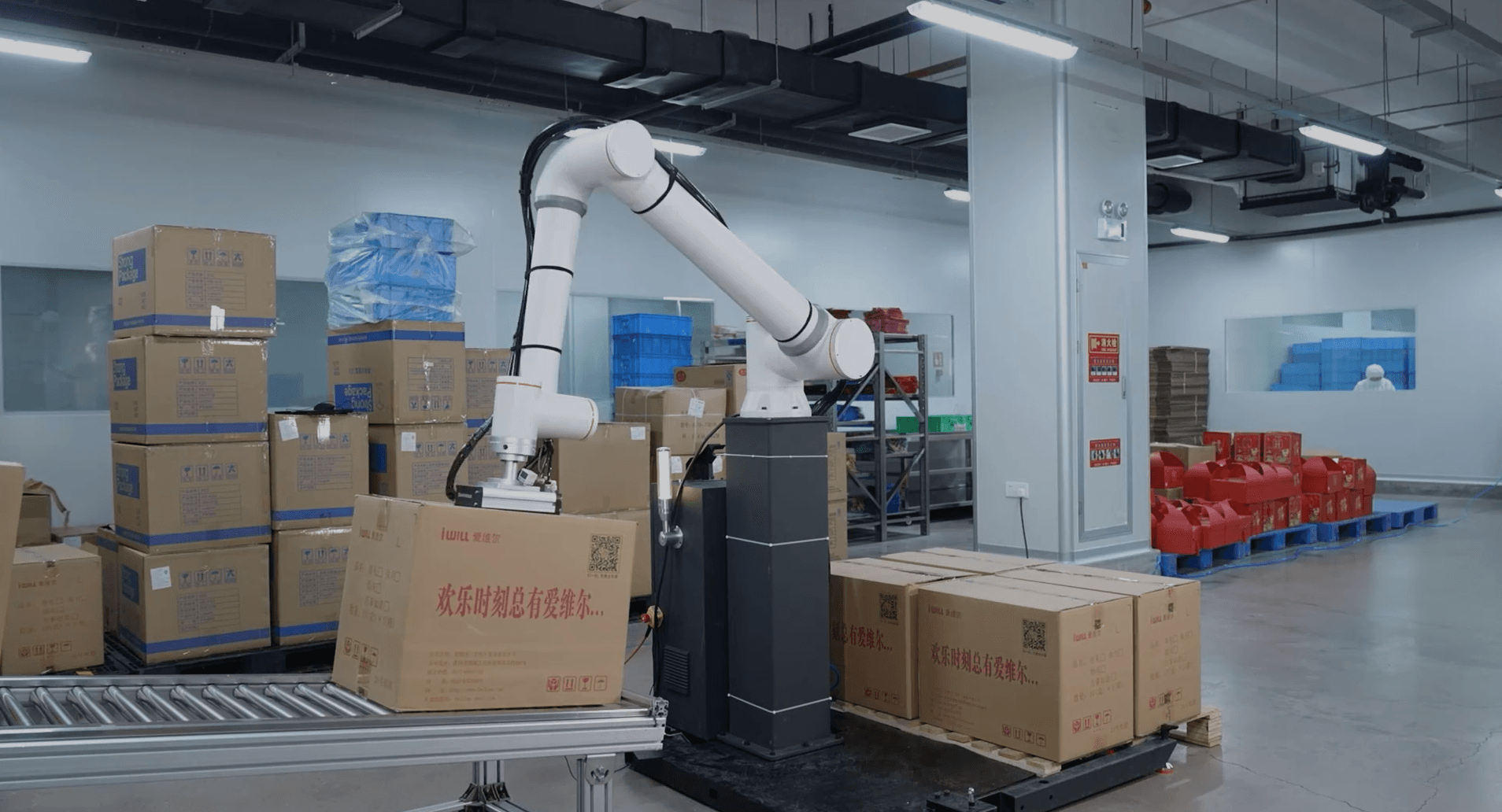

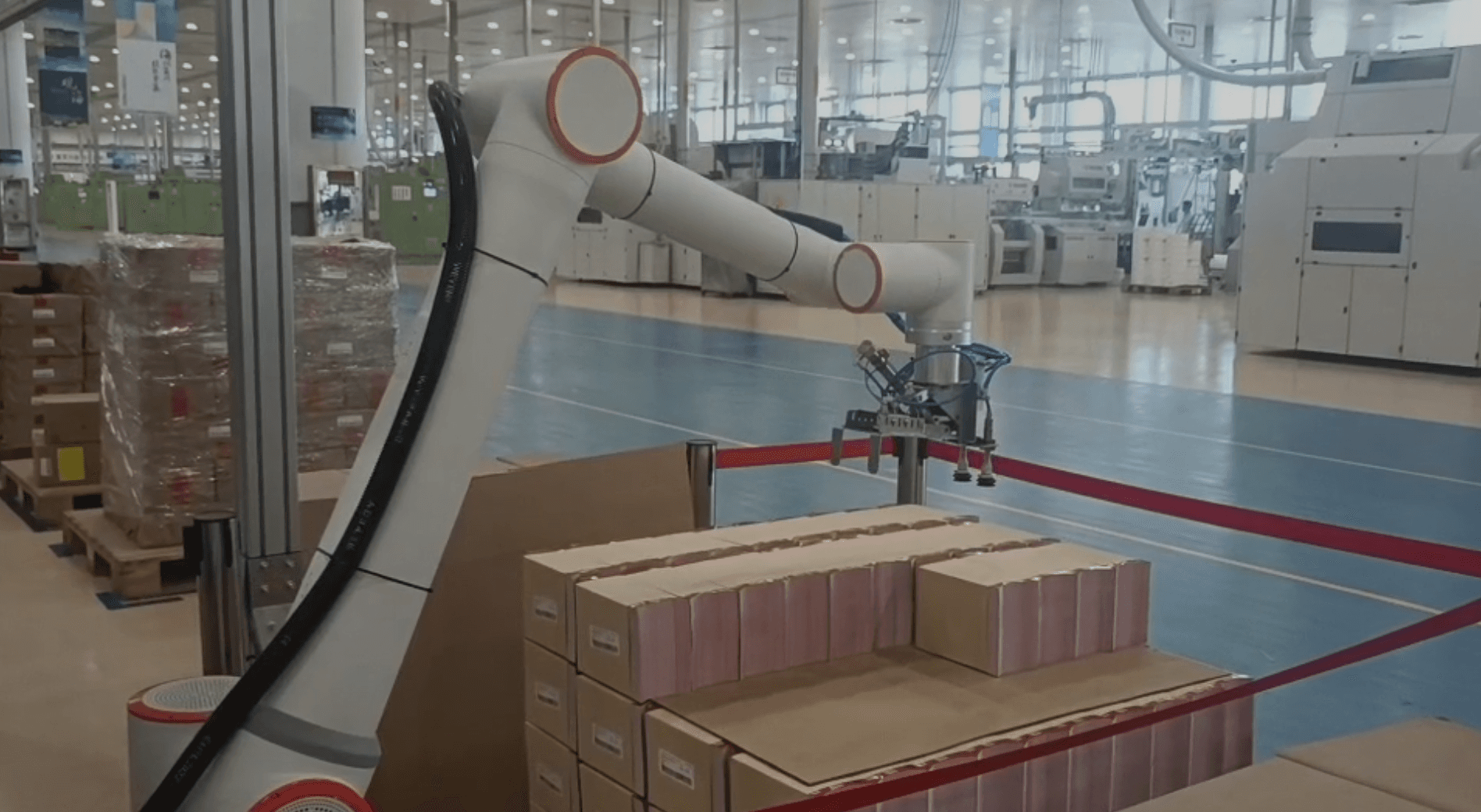

With a reach of 1854 mm, the FAIRINO FR20 IP65 is one of the longest-reach models in the FAIRINO FR series. This allows large work areas to be covered without the need for additional linear axes or complex automation concepts. The combination of a 20 kg rated payload and a maximum payload capacity of 25 kg enables the handling of larger workpieces, cartons, containers, and substantial gripper systems. Typical applications include palletizing, machine tending, packaging, and material handling. TCP speeds of up to 2 m/s support short cycle times for repetitive processes. At the same time, flexible mounting options facilitate integration into existing production systems and simplify adaptation to specific manufacturing requirements.

The FAIRINO FR20 IP65 supports a wide range of industrial communication standards, enabling seamless integration into diverse automation environments. Modbus TCP, Modbus RTU, and EtherCAT are included as standard, while PROFINET, EtherNet/IP, and CC-Link are available as optional interfaces. This allows the robot to communicate with PLC systems, machine controllers, and higher-level automation platforms. Integration with Siemens TIA Portal, Beckhoff TwinCAT, Codesys, Rockwell Studio 5000, and B&R Automation Studio is significantly simplified through the available communication interfaces. In addition, digital and analog I/O are provided for the direct connection of sensors, grippers, and other peripheral devices. This reduces integration effort and supports the rapid implementation of new automation projects.

The FAIRINO FR20 IP65 offers multiple options for creating and customizing robotic applications. Programs can be developed using the teach pendant, the browser-based WebApp, intuitive drag-and-drop programming tools, or traditional script-based programming. For custom integrations, SDKs are available for Python, C++, and C#. The system also supports ROS and ROS2, making it suitable for research projects, vision-guided applications, and integration into modern software architectures. Communication via TCP/IP, fieldbus protocols, and ROS interfaces enables seamless connectivity with existing IT and automation infrastructures. As a result, the FR20 IP65 is suitable for both standardized production processes and tailor-made automation solutions.

The FAIRINO FR20 IP65 serves as the foundation for fully integrated automation solutions. Through the RBTX portfolio, the robot can be combined with compatible grippers, machine vision systems, force-torque sensors, linear axes, safety components, and additional accessories. This enables the creation of powerful solutions for palletizing, machine tending, material handling, packaging, and quality inspection. Thanks to the FR20 IP65's open communication interfaces, additional hardware and software can be integrated efficiently into the existing control architecture. Users benefit from a centralized platform for selecting compatible products and can expand their applications step by step. This transforms a single cobot into a scalable automation solution that can be flexibly adapted to new processes and future requirements.
