Name: 2-Axis Delta | Large
Brand: igus®
SKU: RBTX-IGUS-0059
Price: 10,647.02 USD
Availability: InStock

fairBanner

CommunityDesignLink

showCommunityLink

rbtxpert-button-de

rbtxpert-button-us

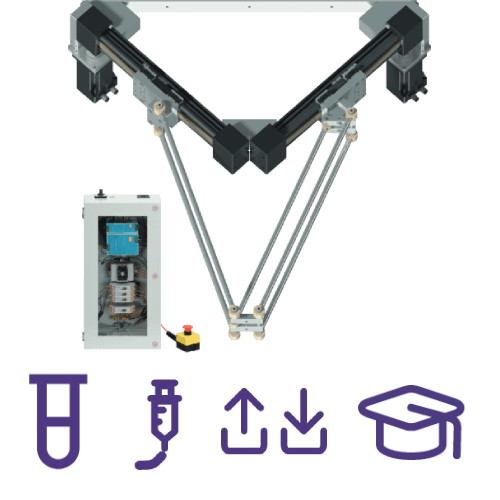

The 2-axis Delta was specially developed for extra fast pick & place tasks. It can be used for pick and place tasks, conveyor belt picking, sorting tasks or stacking tasks. The Delta robot as 2-axis kinematics is supplied in two different sizes with matching controllers.

The weight of an end effector will decrease the available payload of your robot.

2-Axis Delta | Large

Robots

CAD file

Technical drawing

Technical documentation

igus Robot Control manual

Vendor link

3hLrW9vPiJI3MoDO1KlPzr

This set enables you to control the robolink® robot arm. With the corresponding software, you can programme and move the robot via a graphical user interface.   Main features:

Modular control and Software

Download the software now for free. This allows you to familiarize yourself with the user interface and functions even before you buy the components. With the Digital Twin you get an overview of the possibilities of your robot. (System requirements: Windows 10 PC, free USB 2.0 port, Ethernet port, 500 MB free storage)

Download now and try it out in advance

The Delta robots from igus® are available as 2-axis or 3-axis variants. They are suitable for pick and place, conveyor belt picking and stacking tasks in three-dimensional space. In conjunction with a gripper or suction cup and a vision system, bin picking tasks can be implemented very quickly.

You can control the robot either from your Windows 10 PC or from the optional handheld with touch screen. On the PC the robot can be programmed via a graphical user interface. With the handheld you can control the robot with a joystick and start programs via the touch screen. In addition, you can also connect a gamepad to your Windows PC for control as an alternative to the handheld. With this handheld, the robot runs autonomously without the computer after programming via the Windows PC.

Choose the right setup for you.

Pick and Place with the igus Delta

Pick and Place mit dem igus Delta

易格斯Delta机器人用于拾放

與 igus delta一起拾放

Picken en plaatsen met de igus Delta

Pick & Place

Pick-and-Place

Al ve yerleştir

拾取&放置

픽 앤 플레이스

ピック&プレース

Pick &amp: Place

取放 (揀選 & 放置)

Pick and place

หยิบและวาง

pick-n-place

Customer Tests

Testen door klanten

Tests clients

Müşteri Testleri

客户测试

Tes Pelanggan

Testes de clientes

Testy klienta

การทดสอบของลูกค้า

客戶測試

Kundentests

Test dei clienti

customer-tests

Bin-Picking

料框抓取

箱式拾取

Grijpen in de kist

Collecte de bac

빈 피킹(Bin-picking)

ビン詰め作業

Podnoszenie-Pojemników

bin-picking

This customer test shows a classic pick and place application. The only difficulty was the workpieces, which were always differently shaped. But with the right gripper unit and a camera system, the components could be reliably picked up at different positions.

Delta robots are characterized by their speed and precision. Typical applications are pick and place tasks with fast cycle times. For example, in combination with a conveyor belt.

Produktion

Manufacturing

Production

製造業

Fabricação

Productie

Produkcja

การผลิต

制造业

Üretim

제조

Produzione

manufacturing

Simulation einer Verpackungsanwendung mit einem igus Delta Roboter

Simulation of a packaging application with an igus Delta robot

使用 igus Delta 機器人模擬封裝應用

Simulatie van een verpakkingstoepassing met een igus Delta robot

使用易格斯Delta机器人模拟自动拾放应用

In this application test for a customer, a simple pick and place application from the packaging sector was to be simulated. An igus 2-axis Delta robot was used, which picks up the components and brings them to the desired position with the help of a Cobot pump that generates an electrical vacuum.

With the help of the linear axis, the conveyor belt could be simulated and the cycle time realistically tested.

Verpackung

Packaging

包装機械

包装业

Verpakkingsindustrie

포장 산업

包裝業

Przemysł pakujący

Emballage

Empaquetado y embalaje

packaging

Automated handling of snail shells

Automatisiertes Handling von Schneckenhäusern

Handhabung

Material handling

Manuseio de materiais

Malzeme taşıma

Przeładunek materiałów

Manipulación de materiales

倉儲物流

物料搬运

Materiaal handling

ระบบจัดการสินค้า

물류 산업

Movimentazione dei materiali

マテリアルハンドリング

Manipulation

material-handling

In this particular customer application, the task was to transport snail shells to various positions within a cycle time defined by the customer. The main challenge was selecting an appropriate end effector, as the snail shells needed to remain undamaged throughout the process.

After careful consideration and analysis of the requirements, the decision was made to use a SoftGripper. This type of gripper is characterized by its flexibility and adaptability, allowing it to conform to the shape of the delicate snail shells. This not only ensures safe transportation but also minimizes the risk of damage.

The choice of the SoftGripper was crucial for the success of the application, as conventional grippers, due to their rigid structure, would not have been able to handle the fragile snail shells without causing damage. By using the SoftGripper, the required cycle time could be met while preserving the integrity of the snail shells.

Restaurant

Restauration

餐饮

レストラン

餐廳

식당

restauracja

gastronomy

Downstream sprue separation using a Delta-Robot

Nachgelagerte Angusstrennung per Delta-Roboter

Spritzguss

Injection molding

注塑成型

injection-molding

In this video, we present an innovative solution for downstream sprue separation in injection molding production. This application uses a Delta robot, IRC, Zimmer gripper, camera, rotary conveyor, and step feeder to optimize the process and maximize efficiency.

The video demonstrates the operation of the rotary conveyor and the camera for precise detection and separation of sprues. The Zimmer gripper is shown in action, handling the sprues safely and efficiently. The step feeder supports the process with its precise conveying technique.

This solution offers numerous benefits, including increased production speed, reduced scrap rates, and improved workplace safety. Additionally, a low footprint is ensured, facilitating integration into various production environments.

Downstream sprue separation of clip bearings

Nachgelagerte Angusstrennung von Clipslagern

In this video, we present an advanced solution for downstream sprue separation of clip bearings in injection molding production. The application utilizes a Delta robot system, IRC, rotary conveyor, an igus vacuum gripper with rotation unit, and a Zimmer gripper to optimize the process and increase efficiency.

The setup of the Delta robot and the integration of the IRC are shown, as well as the operation of the rotary conveyor and the camera for precise detection and separation of sprues. The igus vacuum gripper with rotation unit is demonstrated in action, handling the clip bearings safely and efficiently. The Zimmer gripper complements the process with its precise gripping technique. The entire system operates smoothly and efficiently thanks to reliable power and data transmission.

The benefits of this solution include increased production speed, reduced scrap, and improved workplace safety. Additionally, a low footprint is ensured, facilitating integration into various production environments.

Inexpensive packaging application with vacuum gripper

使用真空夹具的低成本包装应用

Voordelige verpakkingstoepassing met vacuümgrijper

Applicazione di confezionamento economica con pinza a vuoto

Preiswerte Verpackungsanwendung mit Vakuumgreifer

Aplicação de embalagem econômica com garra a vácuo

Assembly

Montage

조립

Montaż

安装

Assemblage

組裝

組付け

Montaje

assembly

The video shows a test setup by igus for customers from the packaging industry. A Delta robot is used in an igus cell. The robot uses a cobot pump to pick up small parts and places them from the conveyor belt into a box.

This demonstrates the robot’s ability to perform precise and efficient movements, which is crucial for packaging applications. It’s a good example of the application of automation technology in the packaging industry.

Logistik

Logistics

Logistiek

物流設備

物流

Logística

물류 시스템

Logistique

Logistyka

搬送装置

logistics

Vision based mushroom handling application

Applicazione di manipolazione dei funghi basata sulla visione

Kamerabasiertes Handling von Pilzen

Vision-toepassing voor verwerking van champignons

Aplicativo de manuseio de cogumelos baseado em visão

总览

As part of a customer test in the Customer Testing Area of igus in Cologne, a test setup was realized for a customer. The aim of the test was to evaluate the pick-and-place process for the food industry. Specifically, the aim was to pick and place mushrooms from the conveyor belt. The following components were used:

The test setup made it possible to test the efficiency and accuracy of the pick-and-place process. The combination of the igus Delta Robot and the ifm 2D camera offers a reliable solution for automated tasks in the

Food

Gıda

食品级

食品

Industria alimentaria

Makanan

Alimentos

Produits alimentaires

Nel settore alimentare

อาหาร

食物

Żywność

Voedsel

식품

Lebensmittel

food

Vision based Pick and Place application with rotary gripper

Kamerabasierte Pick and Place Anwendung mit Drehgreifer

Aplicação de Pick and Place baseada em visão com garra rotativa

Vision-gebaseerde Pick & Place-toepassing met roterende grijper

Applicazione pick & place basata sulla visione con pinza rotante

This video presents a customer test setup in which small components are moved on a conveyor belt in a robot cell. At the beginning of the video, we see how the small components are placed on the conveyor belt. They are then transported into the robot cell. A camera strategically placed in the cell recognizes the exact position of the parts on the belt. Once the camera has captured the coordinates of the parts, this information is passed on to a delta robot mounted on top. This robot is equipped with a pneumatic rotary gripper that grips the parts precisely. The delta robot then moves, controlled by the coordinates provided by the camera, and always places the parts in the same orientation. This process demonstrates the precision and efficiency of the robot cell when handling small components. In summary, this video is an excellent representation of the application of modern robot technology in manufacturing and assembly. It shows how efficient and accurate handling of small components can be achieved through the use of cameras, delta robots and pneumatic rotary grippers.
