Belt Conveyor GUF-P 2000 with 250 W for medium-weight parts, optional with control
Variantes: L1000xW200 mm, with FI
The GUF-P 2000 is a belt conveyor with a modular profile design for conveying light and medium-weight goods. It is particularly suitable for transporting packaged and unpackaged piece goods, without any specific requirements regarding the product’s position, orientation or geometry.
The T-slots running along both sides (10 mm slot width) in the conveyor frame allow you to easily integrate the conveyors into existing machine frames or to attach conveyor stands, side rails, sensors and other accessories.
The optional frequency inverter (FI) allows for 4 preset speed levels and serves as the interface with the robot. It is completely installed on a separate control cabinet and wired ready for connection.
A base frame is not included in the scope of delivery. Please contact us if required!
The product can be customized to your needs. Please contact us.
Nuestros destacados
Widths: 200 / 300 / 400
Lengths: 1000 / 1500 / 2000
Conveyor belt: PU, white FDA, allows for restricted accumulated operation
Drive: AC head drive, 250 W / SEW / AC 230 V / 50 Hz / IP 54
Motor installation position: 0° horizontally under the belt, either on the left or right (default: left)
Speed: adjustable with 6, 18, 30 or 42 m/min.
Total load: < 30 kg
Type of transport: forwards and reversing with start ramp
Power supply: optional frequency inverter, with external DC 24 V interface for starting/stopping, 4 fixed speed levels and selectable direction
Driving roll: Ø 53 mm, w/o rubber coating
Tail: Ø 53 mm
Power transmission: chain drive

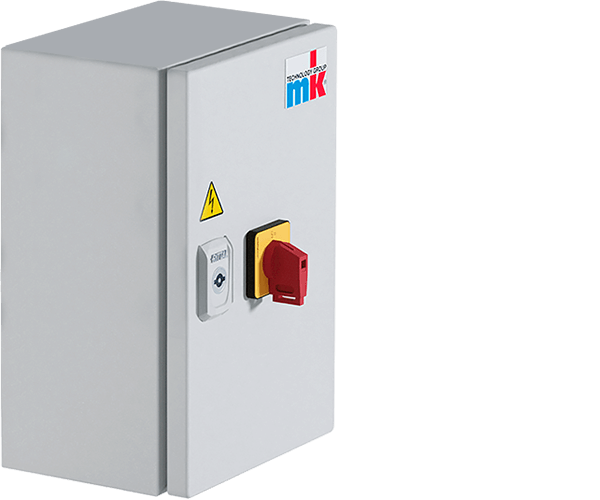

The frequency inverter is used for the power supply and control of the motor and meets, with motor protection and a main switch, the requirements of the EC Machinery Directive (MRL) for a complete machine. The regulation for 4 fixed speed levels, including soft start and reversing operation, as well as start/stop control is carried out via a 24 V DC interface. It is completely installed in a separate IP54 control cabinet and is wired ready for connection. The supply voltage (230V AC / 50 Hz / 16A) and signals are provided with plug connections for direct connection to the main cabinet.
Lengths: 500 to 10000 mm
Widths: 50 to 800 mm
Total load: up to 75 kg (from W=400 mm, max. 25 kg/m)
Speed: up to 80 m/min
Motor installation position: pointing downwards 90°
Belt types: from suitable to unsuitable for accumulated operation
Side rails
Stand systems
Angle fastening for table-top assembly or connection to machine frames
