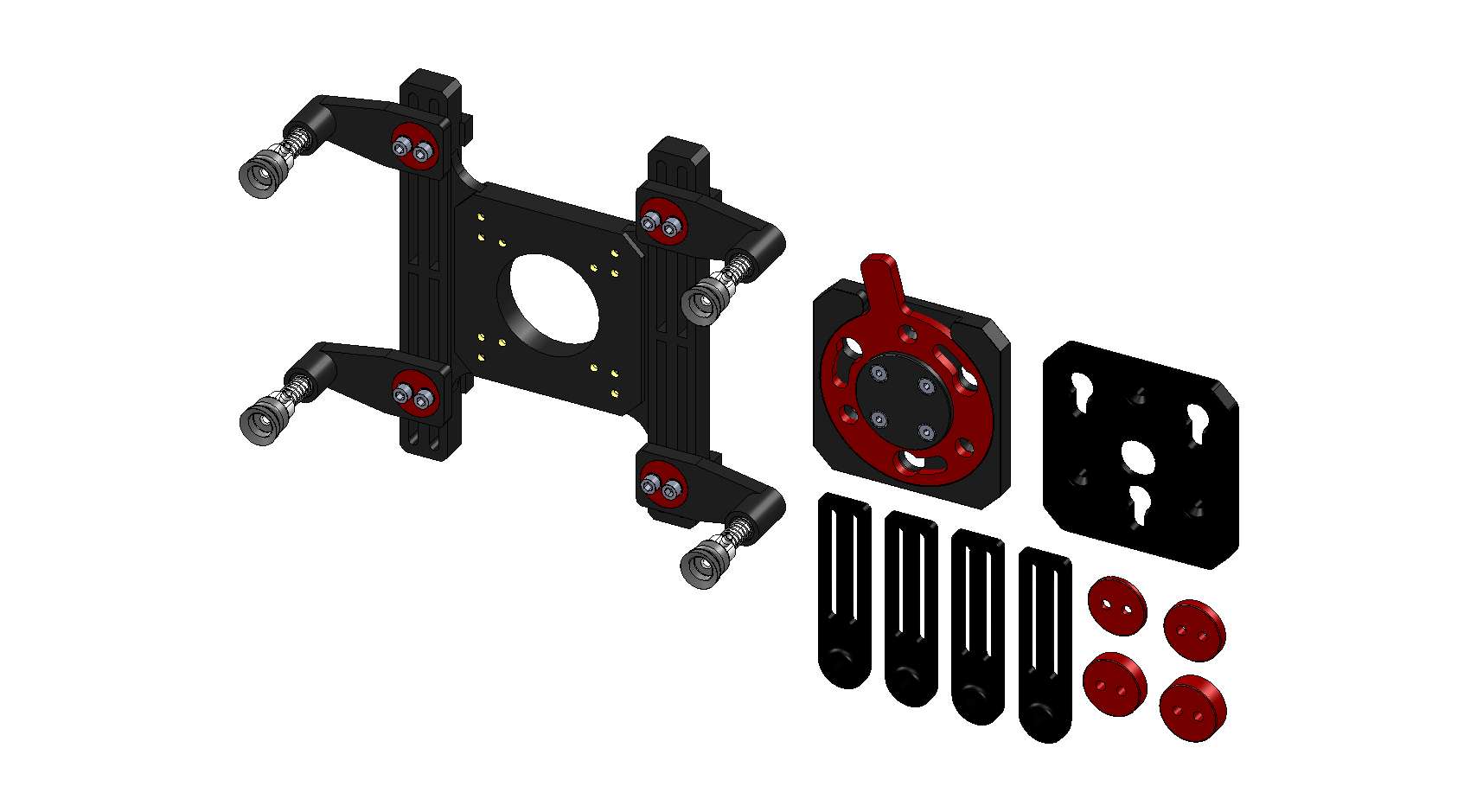

Vacuum gripper sample kit H-profile 200 x 155 mm

Vacuum gripper sample kit mounting plate

Eberle Greifersysteme

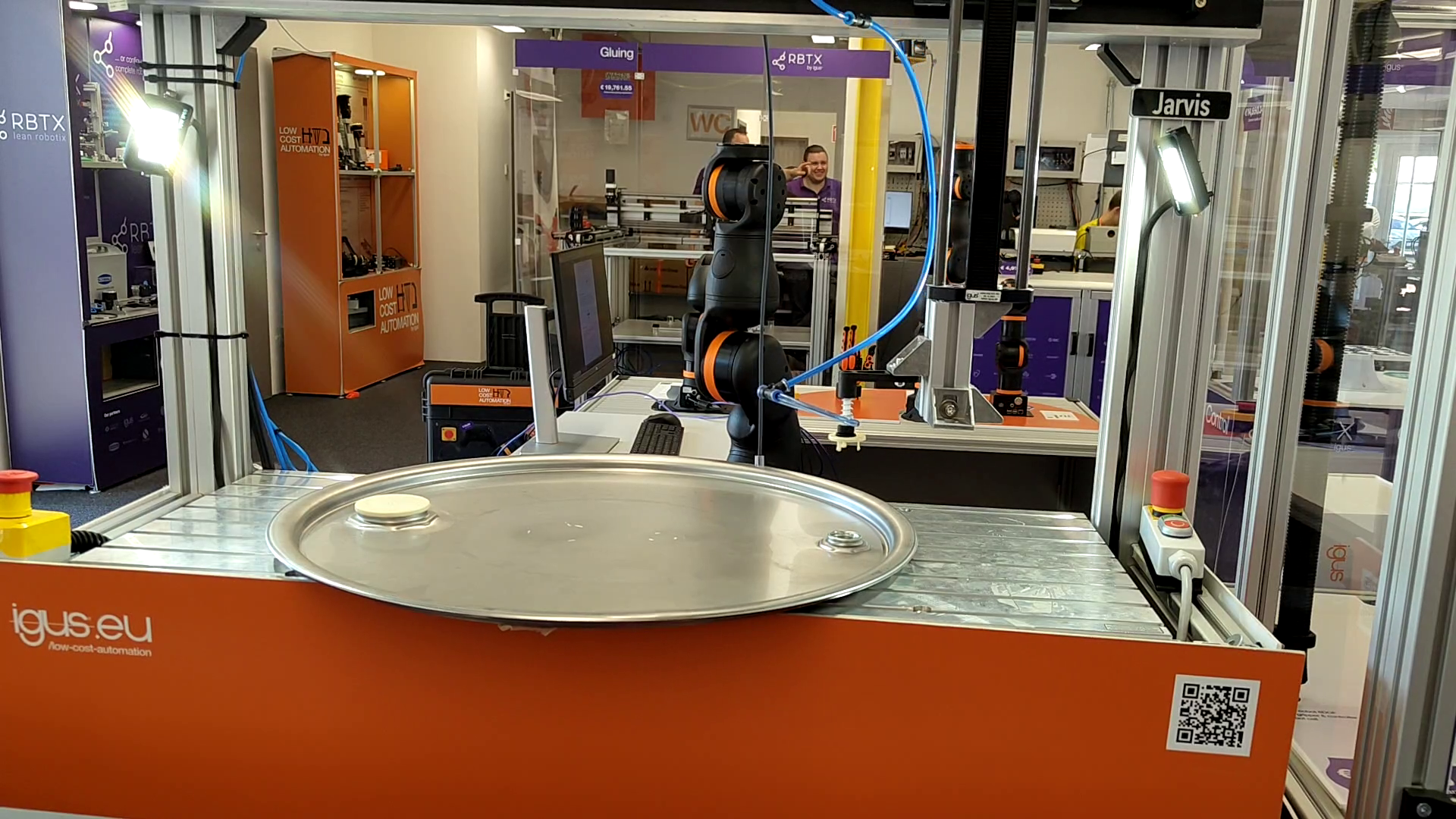

Vision supported Pick and Place application with igus room gantry

Kameraunterstützte Pick and Place Anwendung mit igus Raumportal

Pick & Place

Pick-and-Place

Al ve yerleştir

拾取&放置

픽 앤 플레이스

ピック&プレース

Pick &amp: Place

取放 (揀選 & 放置)

Pick and place

หยิบและวาง

pick-n-place

Customer Tests

Testen door klanten

Tests clients

Müşteri Testleri

客户测试

Tes Pelanggan

Testes de clientes

Testy klienta

การทดสอบของลูกค้า

客戶測試

Kundentests

Test dei clienti

customer-tests

In this application, a pick-and-place solution was tested for a customer using an igus linear robot, a camera, and a conveyor belt. The individual components had to communicate seamlessly to ensure the metal part could be reliably picked up from the conveyor belt and accurately sorted. The integration of the camera for detecting and positioning the metal part, along with the precise control of the linear robot, played a crucial role in ensuring the system’s high reliability and efficiency.

Produktion

Manufacturing

Production

製造業

Fabricação

Productie

Produkcja

การผลิต

制造业

Üretim

제조

Produzione

manufacturing

Pick and place test application with line gantry

Pick and Place Anwendung mit Linienportal

Test before invest: pick & place della tua applicazione con il robot lineare

Testen voordat u investeert: Pick and place testtoepassing met lijnportaal

Teste antes de investir: Aplicação de teste de coleta e colocação com pórtico de linha

投资前先测试：使用十字龙门测试拾取和放置应用

Süper düşük maliyetli

Superlage kosten

Superlowcost

Superniskikoszt

超低成本

Coût très faible

Super low cost

ซุปเปอร์โลว์คอส

Custo superbaixo

초저가

经济型

superlowcost

Handhabung

Material handling

Manuseio de materiais

Malzeme taşıma

Przeładunek materiałów

Manipulación de materiales

倉儲物流

物料搬运

Materiaal handling

ระบบจัดการสินค้า

물류 산업

Movimentazione dei materiali

マテリアルハンドリング

Manipulation

material-handling

Assembly

Montage

조립

Montaż

安装

Assemblage

組裝

組付け

Montaje

assembly

The Pick-and-Place test, conducted by rbtx for a client, is a detailed process that demonstrates the capabilities of automation systems.In the first step of the test, a plastic disc is picked up using an igus linear portal.

The igus linear portal is a high-precision device specifically designed for such tasks. It uses vacuum technology to securely and reliably pick up the plastic disc.

After the disc has been picked up, it is placed at a specific position. This step requires high precision and accuracy, as the positioning of the disc is crucial for the next step of the test.In the final step of the test, the positioned disc is pressed in using an aluminum profile attached next to the gripper. This step demonstrates the versatility of the system, as it is capable of using additional components like the aluminum profile to perform additional tasks.

This test is evidence of rbtx’s capabilities in developing and implementing customized automation solutions tailored to the specific requirements of each client. It also shows the versatility and efficiency of automation systems in modern manufacturing.

Automated packaging with igus Gantry

Geautomatiseerd verpakken met igus Gantry

Automatisiertes Handling von Kartonage mit igus Raumportal

Imballaggio automatizzato con cartesiano igus

Embalagem automatizada com o robô cartesiano da igus

In this video, the igus gantry system in the Customer Testing Area is introduced. The gantry system is equipped with a pneumatic suction gripper used for pick-and-place tasks.The video begins with an overview of the igus gantry system. This state-of-the-art system is capable of precisely moving objects in a three-dimensional space. It is specifically designed for industrial applications and can perform a variety of tasks.In the next section of the video, we see the pneumatic suction gripper in action. This gripper is capable of handling cartons (packaging material) safely and efficiently.

With its help, the gantry system performs a pick-and-place task: it picks up a carton, moves it to another location, and places it there.The video impressively shows how the igus gantry system and the pneumatic suction gripper work together to efficiently and precisely accomplish this task. It’s an excellent example of igus’ advanced technology and its application in real industrial environments.In summary, the video provides a deep insight into the capabilities of the igus gantry system and the pneumatic suction gripper.

It shows how these technologies can help optimize industrial processes and increase efficiency.

Logistik

Logistics

Logistiek

物流設備

物流

Logística

물류 시스템

Logistique

Logistyka

搬送装置

logistics

Verpackung

Packaging

包装機械

包装业

Verpakkingsindustrie

포장 산업

包裝業

Przemysł pakujący

Emballage

Empaquetado y embalaje

packaging

Bucket transport using the pick and place method

Emmertransport met de pick-and-place-methode

Transporte de caçamba usando o método pick and place

Eimer Transport im Pick and Place verfahren

Pick and place per la movimentazione di secchi

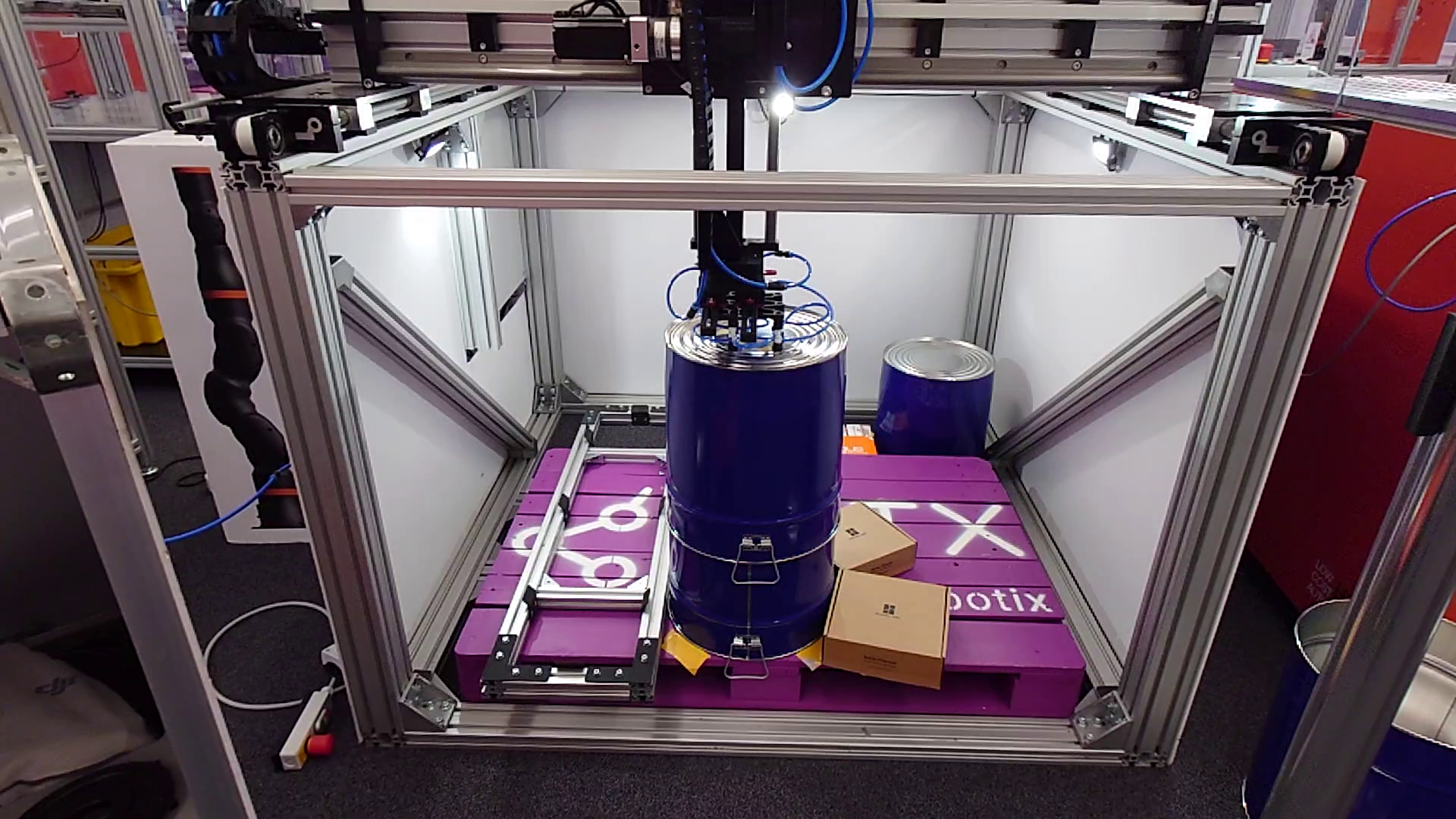

A specific customer test was carried out in our Custom Testing Area. The aim was to transport stacked buckets individually to another location. This was to be achieved using the pick-and-place method.

For this process, the Igus spatial gantry robot was used in combination with the vacuum gripper from Eberle Greiftechnik. The robot sucks in a bucket and transports it to the unloading point. This process is repeated until all the buckets are stacked again at the new location.

The test was successful. The application enables a flexible and safe transport process. By automating the process, it was possible to achieve efficient and precise handling of the buckets.

The combination of the Igus spatial gantry robot and the vacuum gripper from Eberle Greiftechnik proved to be an effective solution for the pick-and-place process. This system offers a flexible and safe method of transporting stacked buckets. It shows the potential for further applications in similar scenarios.

Outra dimensão da configuração têxtil

Another Dimension Of Textile Configuration

Eine neue Dimension der Textilkonfiguration

Un'altra dimensione della configurazione tessile

Een andere dimensie van textielconfiguratie

ADOTC公司

ADOTC - Another Dimension Of Textile Configuration is a Start-Up in Berlin, Germany that takes on automation and digitization for sewing. The vision is to enable batch size 1 on demand in high-wage countries for textile production - away from long transport routes and overproduction. ADOTC is offering flexible low cost automation as a service to increase production capacities for agile production - microfactories for the textile production of lot size 1. The process is based on a low cost robot arm with 5 degrees of freedom with a flexible vacuum gripper system.

Automated packaging of yoghurt pots

酸奶杯的自动化包装

Automatisiertes Verpacken von Joghurt Bechern

Geautomatiseerd verpakken van yoghurtpotten

Embalagem automatizada de potes de iogurte

Confezionamento automatizzato di vasetti di yogurt

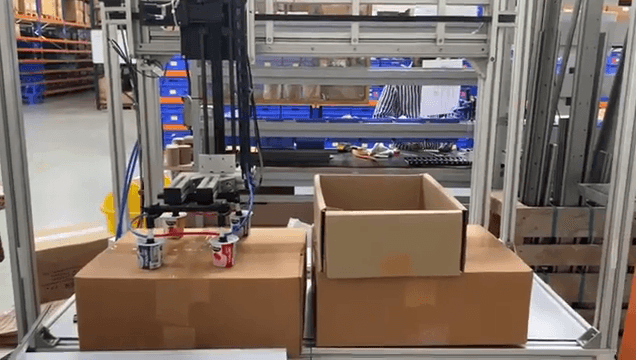

The customer test, which was carried out at the igus branch in India, is intended to serve as an automated, cost-effective packaging process for yogurt cups. The cups are placed in the packaging with the help of a line gantry and a suction gripper. The test was successful and the customer can now put the automated application into operation. Portals are a combination of several linear axes to realize a multi-dimensional movement. For a wide variety of tasks, igus offers gantries as area, line and room gantries. igus gantries contain pre-configured drylin linear modules/axes with NEMA stepper motors as well as all the components required for self-assembly. Application examples for line gantries: Pick and place, labeling applications, sorting systems and identification in microelectronics and medical technology.

Plug holder pick and place

Automatisiertes Steckerhandling

Plughouder pick and place

Suporte de plugue pick and place

Presa e deposito degli attacchi elettrici

插座拾取放置

During this customer test at our branch in India, a handling process with connectors was to be tested cost-effectively in accordance with customer requirements. The customer application was realised with a linear gantry and a suction gripper.

Gantrys are a combination of several linear axes to realise a multi-dimensional movement. For a wide variety of tasks, igus offers gantries as surface, line and room gantries. igus gantries contain preconfigured drylin linear modules/axes with NEMA stepper motors as well as all components required for the customer's own assembly. Application examples for line gantries: Pick and place, labelling applications, sorting systems and identification in microelectronics and medical technology.

Book scanner with Automated Page turn Robot - Low Cost Robotic Application

Buchscanner mit automatisiertem Umblätter-Roboter - Kostengünstige Robotik-Anwendung

帶有自動翻頁機器人的書籍掃描器-低成本機器人應用

Boekscanner met automatische paginadraai-robot - Voordelige robottoepassing

带自动翻页机器人的书籍扫描仪 - 低成本机器人应用

Scanner

Tarayıcı

스캐너

Skaner

掃描器

扫描

เครื่องสแกน

スキャナー

scanner

In this application, a scanning process of book pages was successfully automated with the help of an igus Robolink DCi. Before the robot was used, each page was turned manually by an employee. This activity is not only monotonous, but also cost-intensive. Thanks to the inexpensive robot arm, this process could be automated and the investment has already paid for itself after a short time.

Eberle Greifersysteme

Products from Eberle Greifersysteme

Low cost solutions built with RBTX
