Name: SCARA 4 DOF | size M | Reach 560 mm
Brand: igus®
SKU: RBTX-IGUS-0168
Price: 10,536.01 GBP
Availability: InStock

fairBanner

CommunityDesignLink

showCommunityLink

rbtxpert-button-de

rbtxpert-button-us

The SCARA robot for fast and flexible use. Typical tasks include assembly and joining tasks, such as in the electrical industry. In most cases it is used for loads up to 2 kg.

The weight of an end effector will decrease the available payload of your robot.

SCARA 4 DOF | size M | Reach 560 mm

Robots

CAD file

Technical documentation

User manual dryve D1

Declaration of incorporation

Vendor link

3UcKbkbugM0Hv2G0sbpLFA

This set enables you to control the robolink® robot arm. With the corresponding software, you can programme and move the robot via a graphical user interface.   Main features:

Includes igus® Robot Control

Modular control and Software

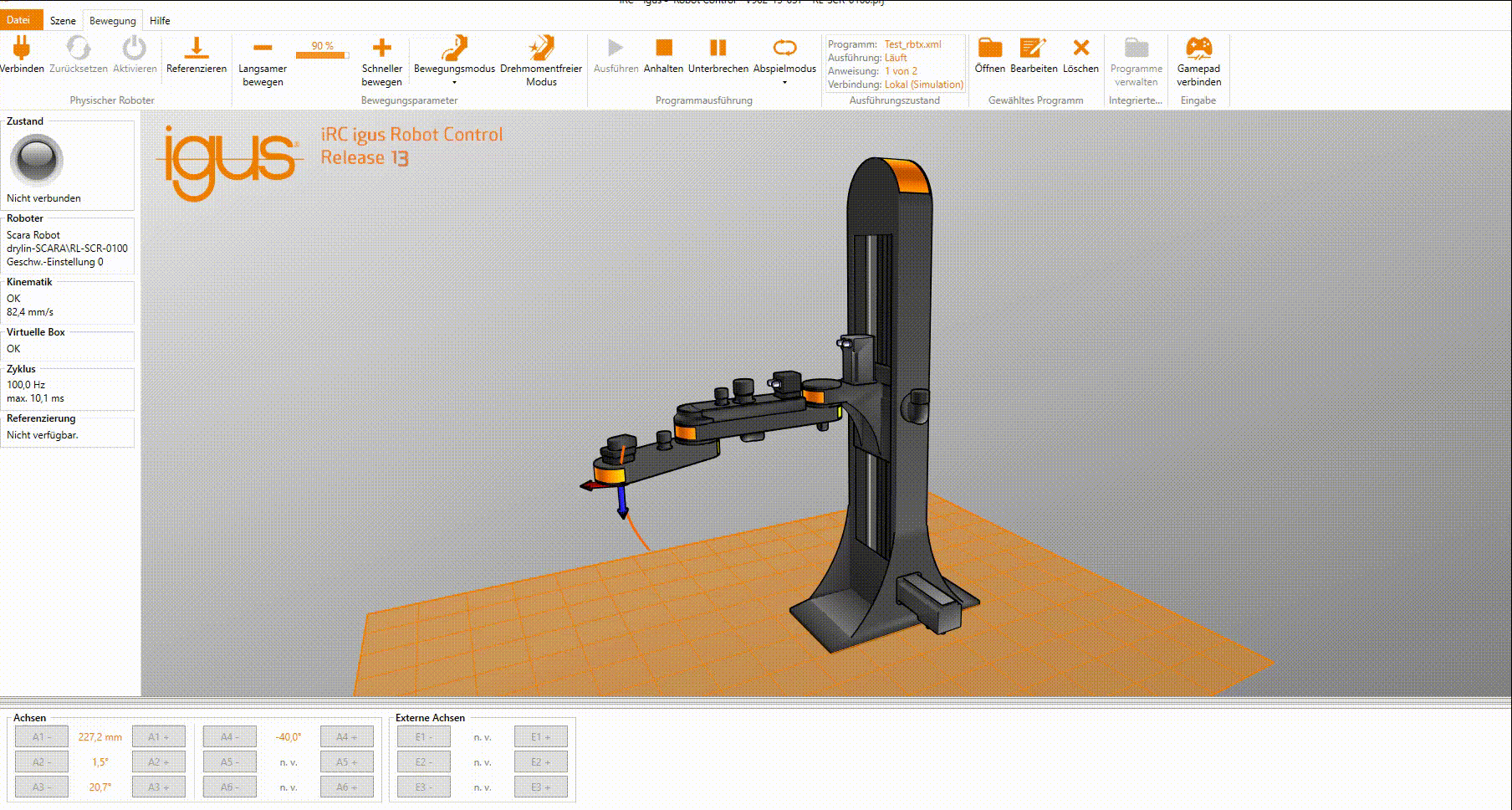

Download the software now for free. This allows you to familiarize yourself with the user interface and functions even before you buy the components. With the Digital Twin you get an overview of the possibilities of your robot. (System requirements: Windows 10 PC, free USB 2.0 port, Ethernet port, 500 MB free storage)

Free Download

Download the software and test if on your computer

You can control the robot either from your Windows 10 PC or from the optional handheld with touch screen. On the PC the robot can be programmed via a graphical user interface. With the handheld you can control the robot with a joystick and start programs via the touch screen. In addition, you can also connect a gamepad to your Windows PC for control as an alternative to the handheld. With this handheld, the robot runs autonomously without the computer after programming via the Windows PC.

Optional handheld with touch screen
